Net Weigher

Net Semi Automatic Weigher

Bagging Weigher

Bagging Weighers are used for filling preset weight of material in Bags. Techno Weigh Systems manufactures both Net and Gross type Bagging Machines for open mouth bags. In Net type Bagging Machine material is pre weighed in Weigh hopper mounted on loadcells and then discharged to bag. In Gross type Machines material is directly feed and Weighed in the Bag.

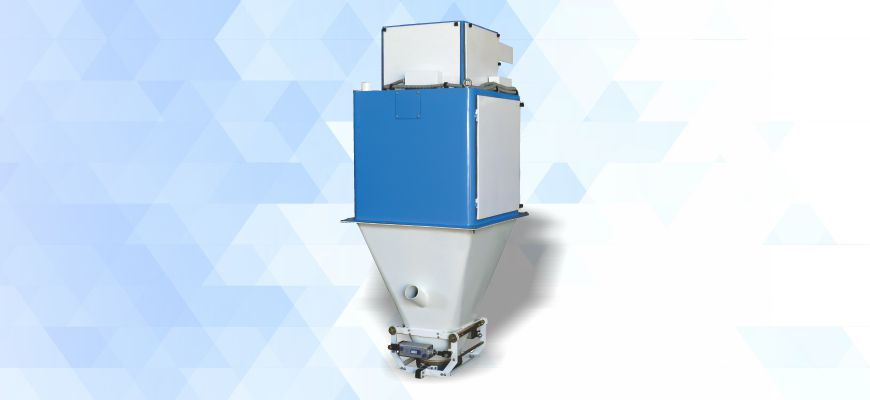

Net Bagging

Techno Weigh Systems Bag filling Machine is designed for automatic filling of material in open mouth bags. In Net filling machines, material is pre weighed in a weigh hopper and filled into bag. Three loadcell suspension system and 24 bit analog to digital conversion ensures speed and accuracy. Systems are available for single weigher or dual weigher for weights ranging from 5 to 100 kg per weighment.

Attachments can be provided for filling Jumbo Bags with a net weigher in multi-dump mode. The machine uses microcomputer technology combined with load cell technology to provide comprehensive and flexible control. Depending upon the flow characteristics of the material, Gravity Feeder, Screw feeder, Vibrator feeder or Belt feeders are used for feeding material from the surge hopper to the weigh hopper.

Dual Weigher

Dust collection points are provided at the Weigh hopper and Bagging Chute for dust free operation.

The Weigh hopper is of enclosed design for dust free operation. All relevant data for optimizing bagging cycle can be set through the controller. Precision control is provided with auto taring, auto inflight adjustment, auto fine feed quantity.
